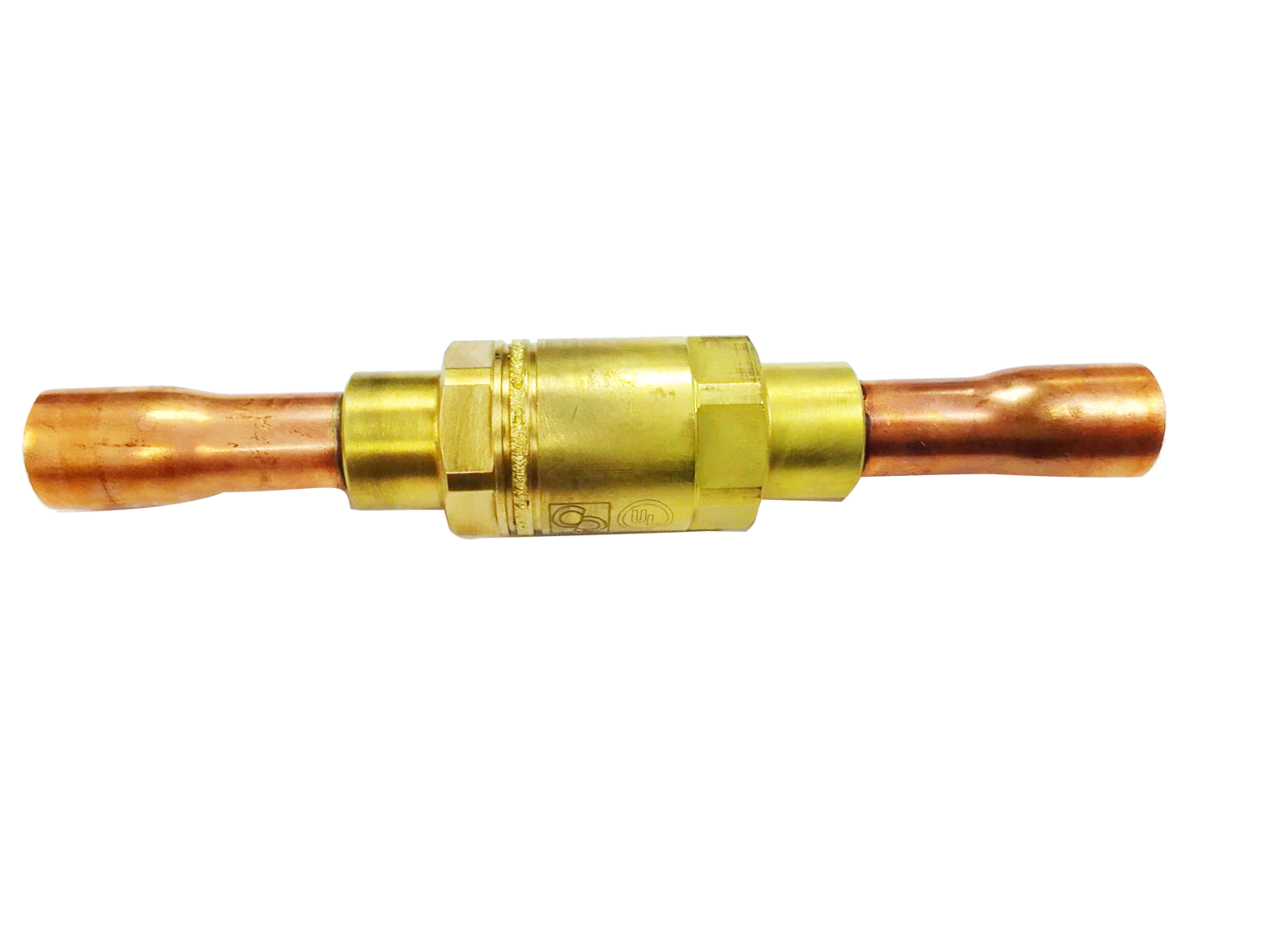

"Check Valve inlet -outlet Connecting =5/8" ODS. Solder. made from hot pressed brass with Teflon (PTFE) valve seat Stainless steel spring"
Brand : Castel
Model : 3132/5
Product type : Check Valve
Size : inlet -outlet Connecting =5/8" ODS. Solder ยาว 139 mm.
Details Check Valve 5/8"ODS. solder, use with the following ASHRAE 34:2019 refrigerants, Class A1, A2L, or A3:
HFC (R134A, R32, R404A, R407C, R410A, R507) HFO (R1234YF, R1234ZE) HFO + HFC (R448A, R449A, R450A,
R452A, R452B, R454A, R454B, R454C, R455A, R513A, R515A, R515B) HC (R290, R600, R600A, R1270)
Product Details Connections ODS Ø [in.] 5/8" ODS. Kv [m³/h] 3,3 Differential pressure (2) [bar] 0,04 PS [bar]
50 MWP [psi] (1) 1160 TS [°C] min. -40 TS [°C] max. +150
For installation in intake, pressure and fluid lines
Check valves made from hot pressed brass with Teflon (PTFE) valve seat
Stainless steel spring
วาล์วเปิด-ปิดด้วยมือหมุน ชนิดขันเกลียวแฟร์ ทางเข้า 3/8" SAE.ทางออก 3/8" SAE"
Stop valves by diaphragm Diaphragm Valve 1/2"Flare inlet and outlet. Valve use with the following ASHRAE 34:2019 refrigerants, Class A1: HCFC (R22) HFC (R134a, R404A, R407C, R410A, R507) HFO (R1234ze) HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B) Connections SAE Flare 1/2"" Kv [m³/h] 1,30 PS [bar] 28 TS [°C] min. -35 TS [°C] max. +90"
Connections 1-1/8”ODS.(1-3/8"ODM) ,Ts= -35 to +150 C ,Ps=45 bar ,Kv=8.4 m3/h
Flang shut off Valve, Outlet Flare Jointed 1-1/8"ODS. Solder ,with in Access Valve Flare 1/4"SAE.
Check Valve inlet -outlet Connecting =7/8" Female SAE Flare. made from hot pressed brass with Teflon (PTFE) valve seat Stainless steel spring"
วาล์วลูกศร ขนาด 1/4'' ODM. ผลิตจากอเมริกา
SPORLAN CRANKCASE PRESSURE REGULATING VALVES PMAX=400PSING ใช้น้ำยา R-12 R22 R-404A ขนาดเชื่อมต่อ 7/8'' ODF. ขนาดรูตัวปรับ 1/4'' ผลิตจาก อเมริกา
Connections 1-3/8”ODS.(1-5/8"ODM) ,Ts= -35 to +150 C ,Ps=45 bar ,Kv=15.0 m3/h
วาล์วเปิด-ปิดด้วยมือหมุน / Stop valves by diaphragm Diaphragm Valve 5/8"Flare inlet and outlet. Valve use with the following ASHRAE 34:2019 refrigerants, Class A1: HCFC (R22) HFC (R134a, R404A, R407C, R410A, R507) HFO (R1234ze) HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B) Connections SAE Flare 5/8" Kv [m³/h] 1,80 PS [bar] 28 TS [°C] min.-35 TS [°C] max. +90
หัววาล์วลูกศร ใช้กับท่อขนาดใหญ่ ขนาด 1/8'' นิ้ว ODF. 1/4''นิ้ว ผลิตจากอเมริกา
"RECEIVER VALVES inlet Connecting =1/2" Male NPT. -outlet Connecting =1/2" Male SAE.FLARE made from hot pressed brass with Teflon (PTFE) valve seat"
Flang shut off Valve, Outlet Flare Jointed 1/2" SAE.with in Access Valve Flare 1/4" SAE.
