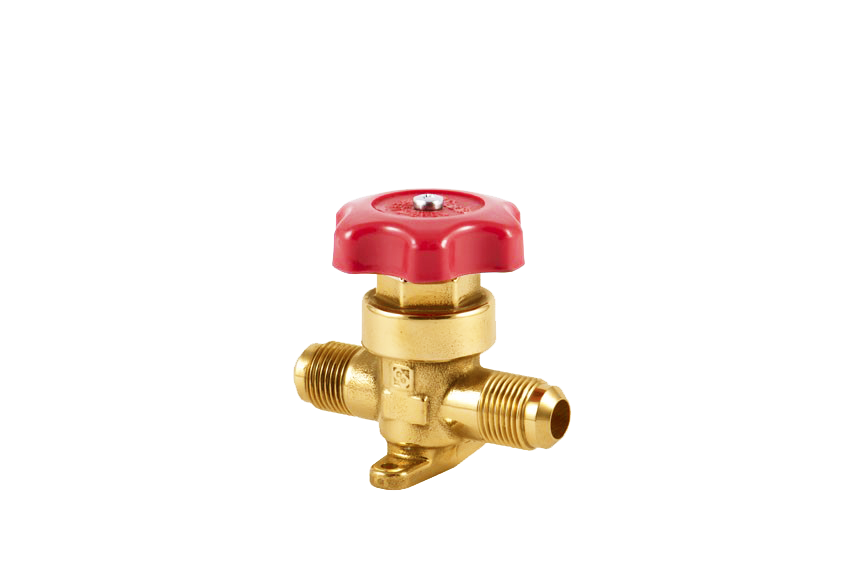

วาล์วเปิด-ปิดด้วยมือหมุน / Stop valves by diaphragm Diaphragm Valve 5/8"Flare inlet and outlet. Valve use with the following ASHRAE 34:2019 refrigerants, Class A1: HCFC (R22) HFC (R134a, R404A, R407C, R410A, R507) HFO (R1234ze) HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B) Connections SAE Flare 5/8" Kv [m³/h] 1,80 PS [bar] 28 TS [°C] min.-35 TS [°C] max. +90
Brand : Castel
Model : 6210/5
Product type : Stop valves by diaphragm
Size : ชนิดขันเกลียวแฟร์ทางเข้า
5/8" SAE.ทางออก 5/8" SAE"
Details : วาล์วเปิด-ปิดด้วยมือหมุน / Stop valves by diaphragm Diaphragm Valve
5/8"Flare inlet and outlet. Valve use with the following ASHRAE 34:2019 refrigerants, Class A1:
HCFC (R22) HFC (R134a, R404A, R407C, R410A, R507) HFO (R1234ze) HFO + HFC (R448A,
R449A, R450A, R452A, R513A, R515A, R515B) Connections SAE Flare 5/8" Kv [m³/h] 1,80 PS [bar]
28 TS [°C] min.-35 TS [°C] max. +90
RECEIVER VALVES inlet Connecting =3/8" Male NPT. -outlet Connecting =1/4" Male SAE.FLARE made from hot pressed brass with Teflon (PTFE) valve seat"
Flang shut off Valve, Outlet Flare Jointed 1-1/8"ODS. Solder ,with in Access Valve Flare 1/4"SAE.
Flang shut off Valve, Outlet Flare Jointed 1/2" SAE.with in Access Valve Flare 1/4" SAE.
Flang shut off Valve, Outlet Flare Jointed 5/8" SAE. with in Access Valve Flare 1/4" SAE.
"Check Valve inlet -outlet Connecting =1-3/4""Female SAE Flare. made from hot pressed brass with Teflon (PTFE) valve seat Stainless steel spring"
Connections 1-1/8”ODS.(1-3/8"ODM) ,Ts= -35 to +150 C ,Ps=45 bar ,Kv=8.4 m3/h
solenoid valve 1/4"SAE Direct, specifically used with HCFC ,HFC,HFO,water,compressed air,gas, oil, MOPD.=0 to 21 bar ,Kv=0.18m3/h ,Ps45 bar ,Ts= -35 to +110 C
inlet Connecting =1/4" Male NPT. -outlet Connecting =1/4" Male SAE.FLARE made from hot pressed brass with Teflon (PTFE) valve seat
กระจกตาแมว แบบมีแถบแสดงตรวจจับความชื้น 7/8" ODS Solder. (เชื่อมบัคกรี) Product DetailsConnections Ø ODS [in.] 7/8" PS [bar] 50 MWP [psi] (1) 500TS [°C] min. -40 TS [°C] max. +120"
